- Since 1986, 64 drillholes (both diamond and reverse circulation) totaling 10,990m have been drilled in three campaigns, the most recent being 16 holes totaling 2831m drilled in 2024-2025.

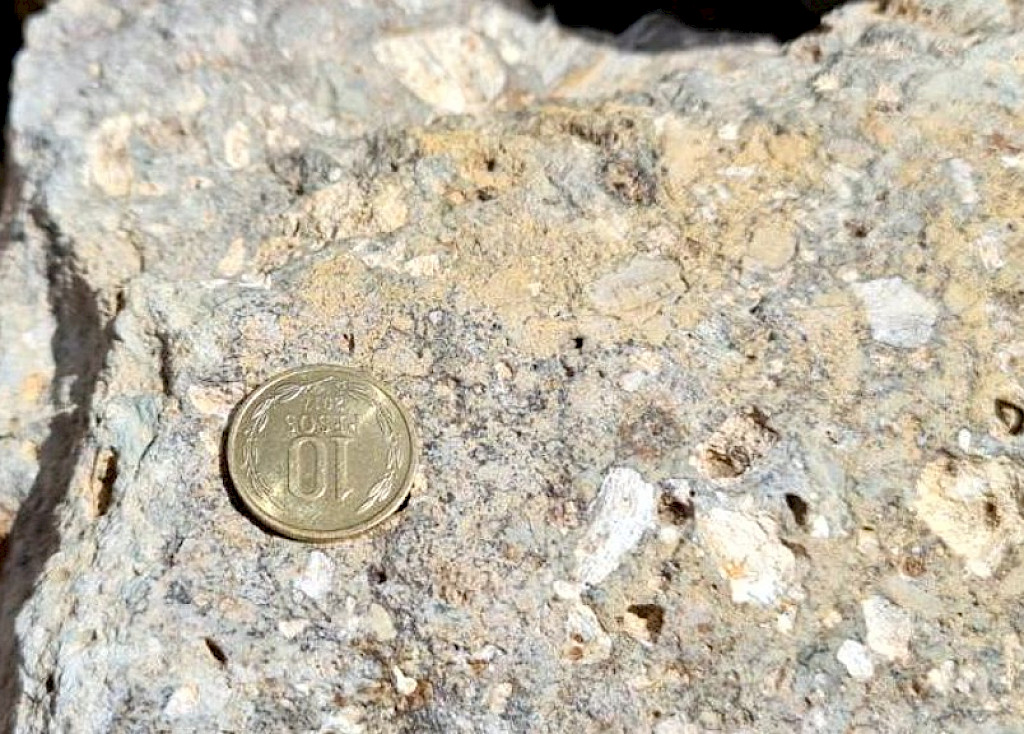

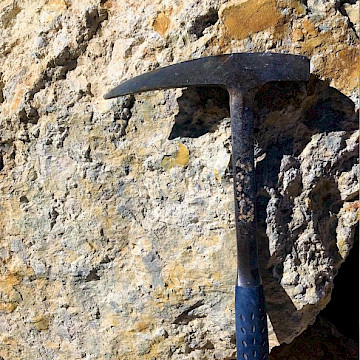

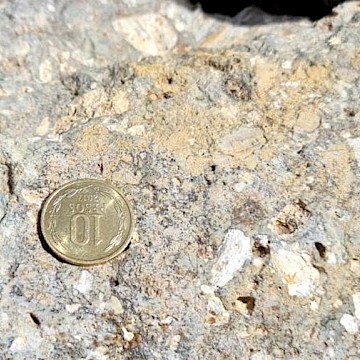

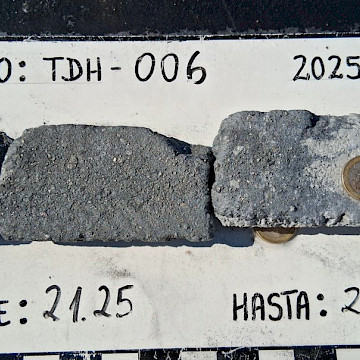

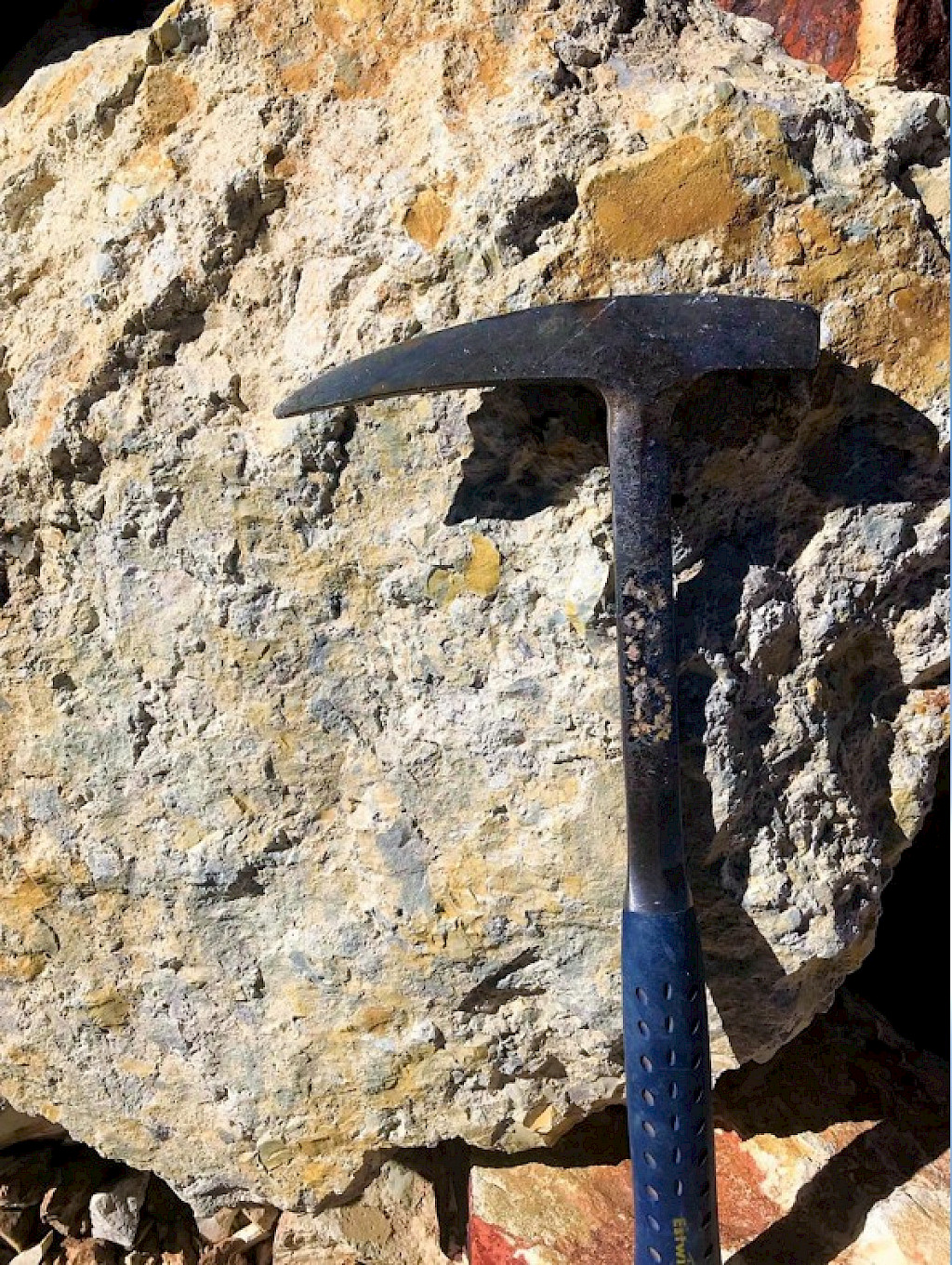

- Drilling has intersected sulphide-hosted gold mineralization (including visible gold) associated with intense silica and sericite alteration of a dacitic diatreme breccia, typical of large gold deposits in the region.

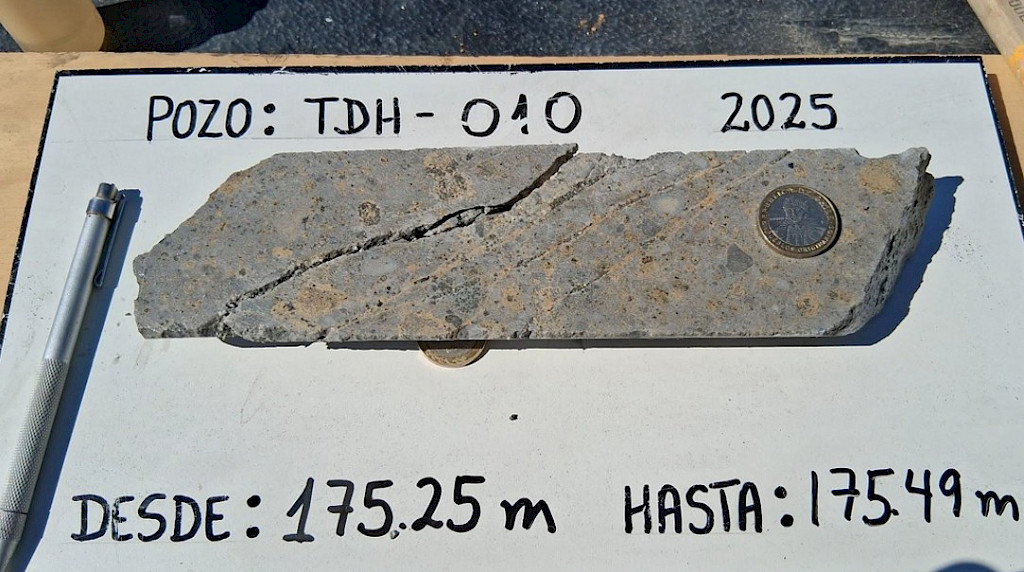

- The breccia matrix is mineralized but it also contains fragments with quartz-vein stockworking indicative of mineralization at depth.
- Multiple historical holes have significant intervals of >1g/t gold, with many ending in ≥1g/t gold, including the following intervals at the end of their holes:
- 43m of 1.18 g/t Au (DT06)
- 35m of 1.23 g/t Au (TT014)
- 26m of 2.09 g/t Au (TT004)
- 58m of 1.42 g/t Au (TT027)

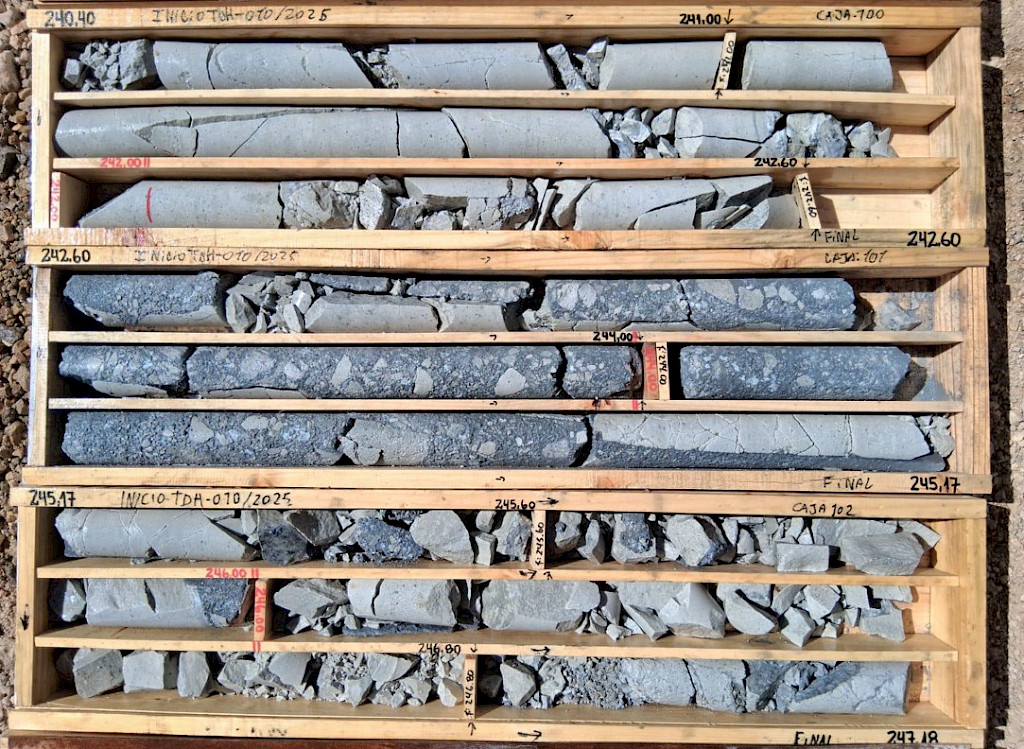

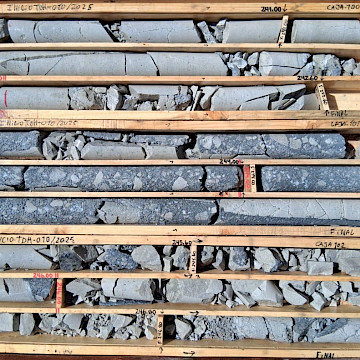

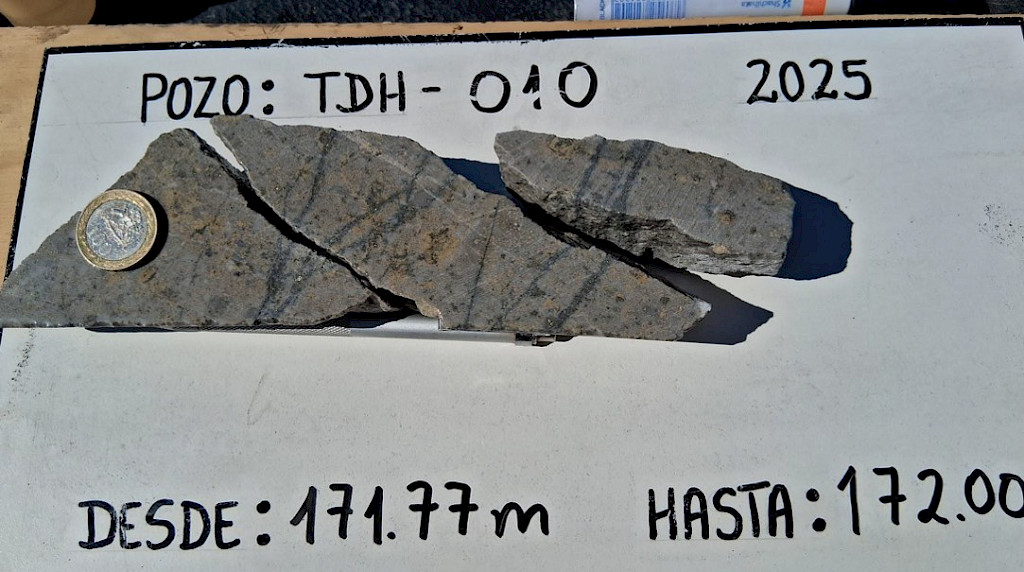

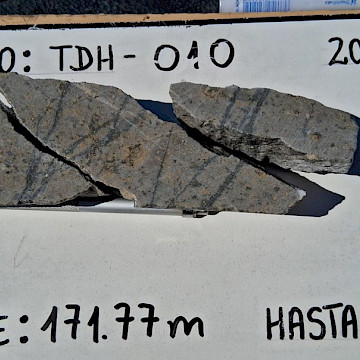

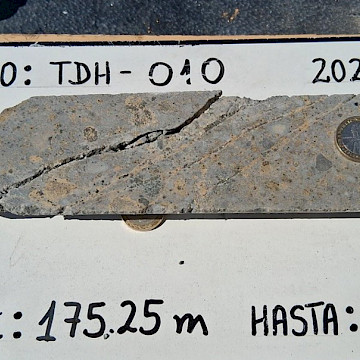

- 82m of 0.93 g/t Au (TDH-010)
- Most of the historical drilling is within 200m of the surface, with the longest hole being 300m (but drilled several kilometres west of the main target).
- The majority of the holes end in anomalous gold grades (5m >0.2 g/t Au), with one quarter ending with 5m >0.5g/t Au: excellent potential for extending mineralization to depth.

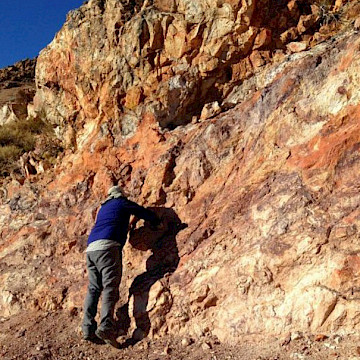

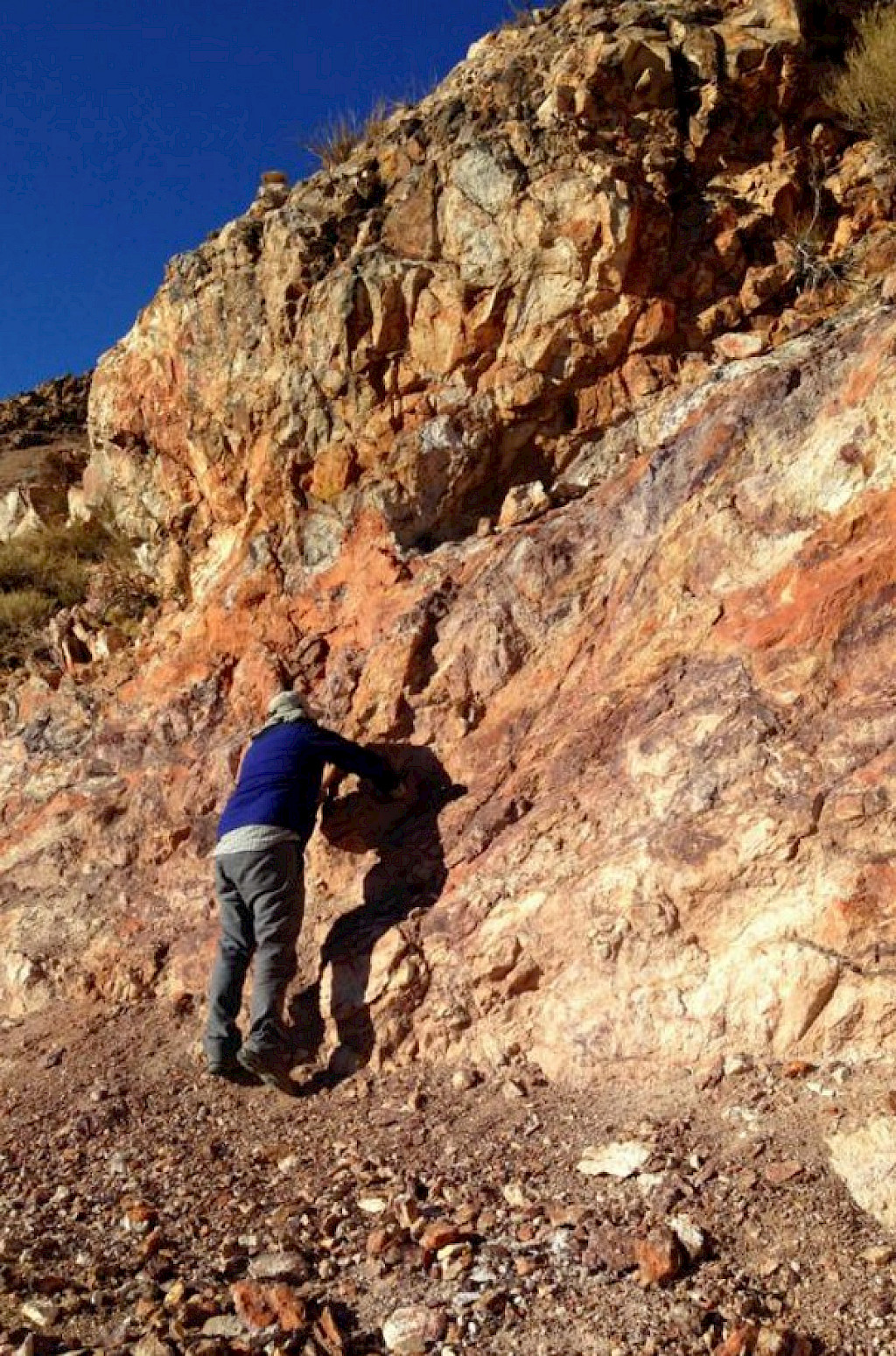

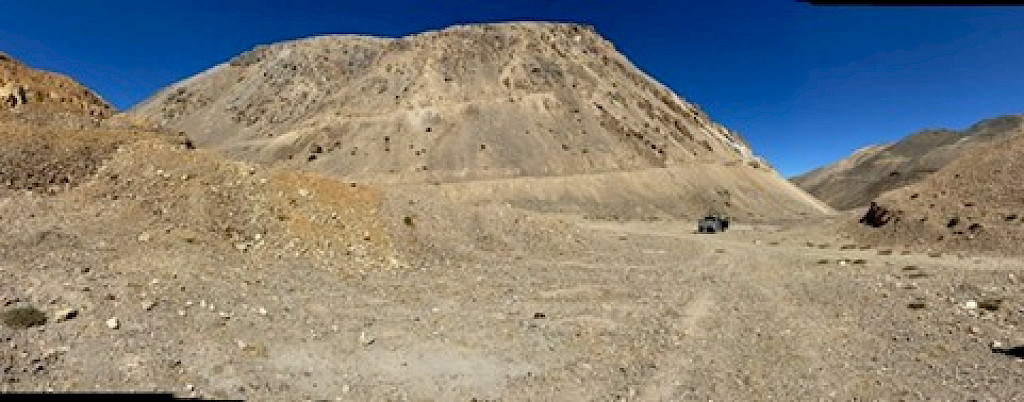

- The central diatreme breccia intrudes reactive, calcareous metasedimentary rocks and the highest soil anomaly at surface follows the contact between these units: this contact remains to be drill-tested.

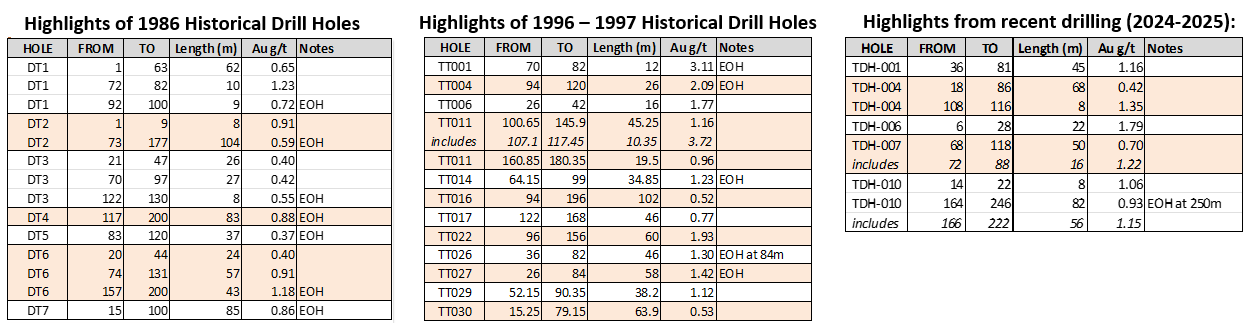

A full list of significant historical drill hole results are provided in the following tables:

Readers are cautioned that descriptions of historical drilling results reported here should be viewed primarily as a guidance for exploration drilling. The qualified person for this release has not done sufficient work to independently verify the historical sampling results described above.

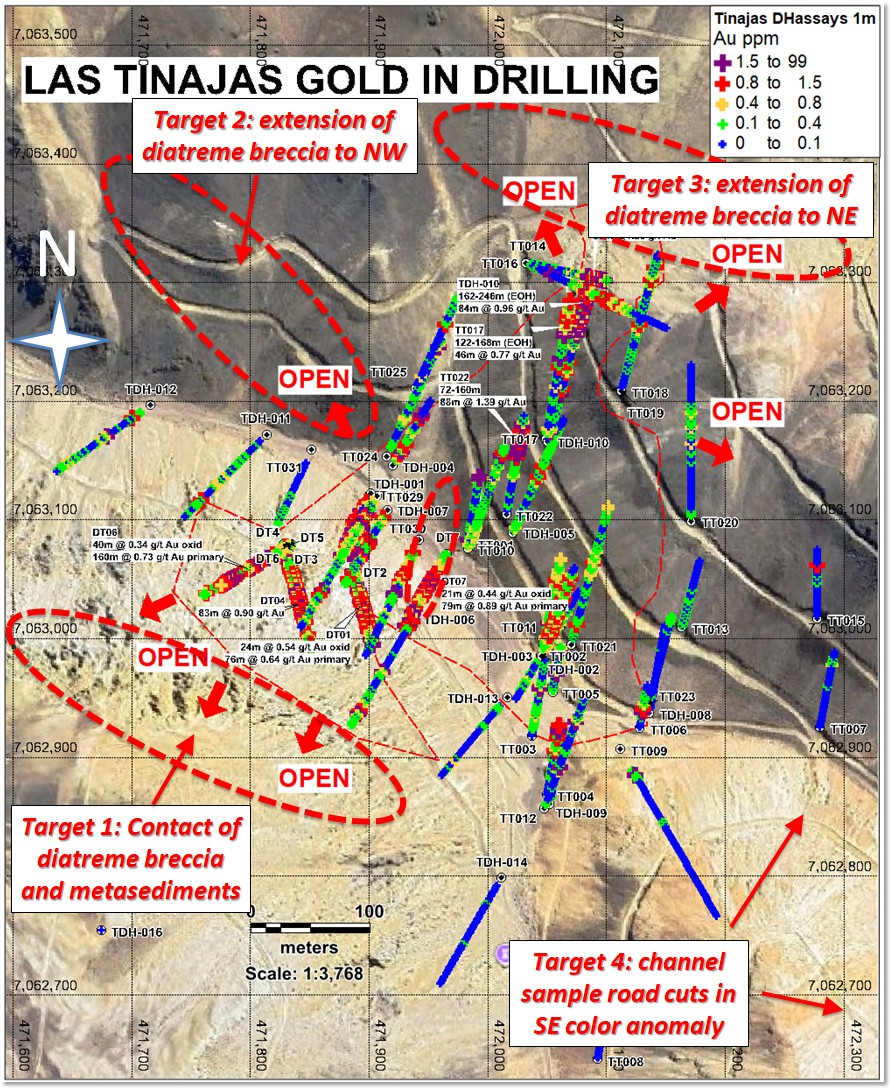

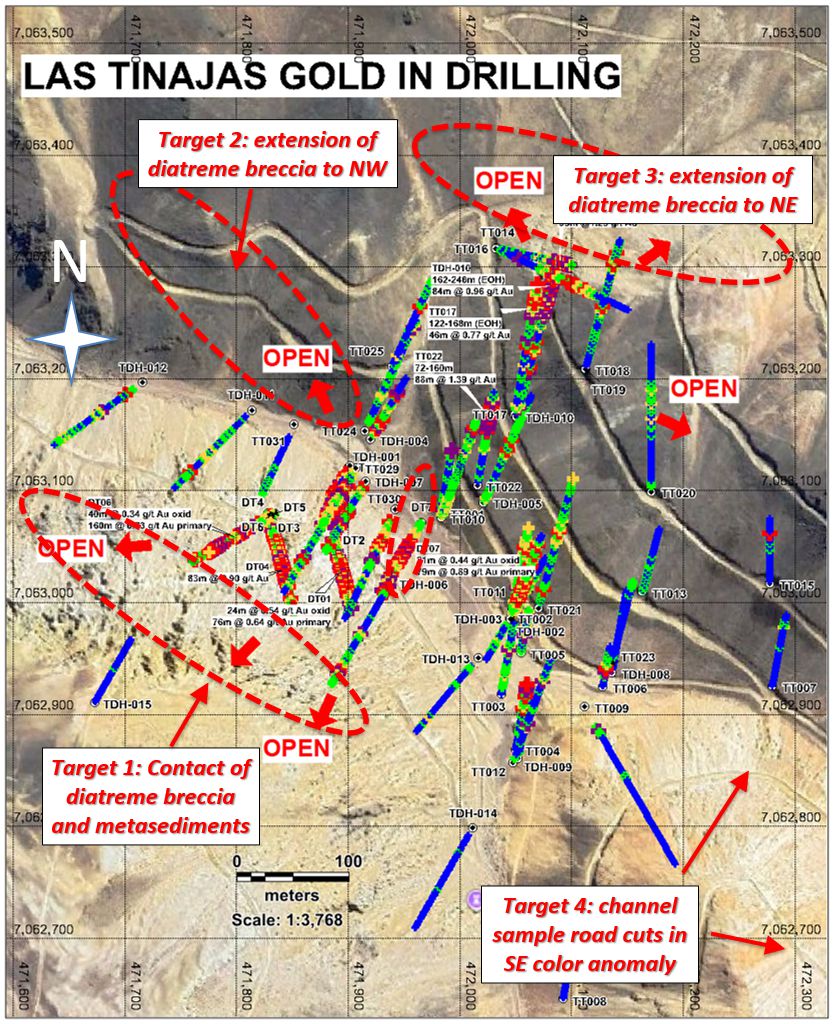

Map of downhole gold assays in historical drilling, showing areas for expansion of mineralization
